(Spekpy) Configure Source Model using class: Reflection_Source

XSPEC provides the xspec.models.Reflection_Source and xspec.models.Transmission_Source classes in order to provide an interpolation function over multiple source spectra simulations.

The reflection source spectrum as a function of source voltage and anode angles can be written as:

\[S^{sr}(E, v, \psi) = S^{sr}(E, v, \psi_0) \frac{Ph(E, v, \psi)}{Ph\left(E, v, \psi_0\right)}.\]

where:

• \(S^{sr}(E, v, \psi_0)\) is the interpolation function over a given list of spectra with different source voltages. It represents the source spectrum as a function of energy (\(E\)), source voltage (\(v\)), and a fixed anode angle (\(\psi_0\)), which serves as a reference.

• \(Ph(E, v, \psi)\) is the Philibert absorption correction factor, applied in an analytical model that considers the anode angle. This factor corrects for the absorption effects that are dependent on the anode angle (\(\psi\)).

Here is an example to configure the provided reflection source class. With the source spectra provided, configure the X-ray source by defining two continuous variables, voltages, and takeoff angle. The process involves two principal steps:

1. Configure the source model with Reflection_Source by passing two continuous parameters, voltages, and takeoff angle, which should be a tuple (init value, min, max). Note that setting min and max to None indicates that we do not need to optimize this parameter.

2. Reflection sources are an interpolation-based model. Use set_src_spec_list to set up a list of simulation source spectra with corresponding source voltages.

import numpy as np
import spekpy as sp

# Generate source spectra using Spekpy for a range of source voltages and a fixed takeoff angle.
min_simkV = 30
max_simkV = 200
dsize = 0.01  # mm, detector size
simkV_list = np.linspace(min_simkV, max_simkV, 18, endpoint=True).astype('int')
reference_anode_angle = 11  # degrees
energies = np.linspace(1, max_simkV, max_simkV)  # energy range

src_spec_list = []
for simkV in simkV_list:
    s = sp.Spek(kvp=simkV + 1, th=reference_anode_angle, dk=1, mas=1, char=True)  # Spekpy model
    k, phi_k = s.get_spectrum(edges=True)  # Get energy and fluence spectrum
    phi_k = phi_k * ((dsize / 10) ** 2)  # Adjusting fluence for detector size, default detector size is 1*1 cm^2

    # Creating a source spectrum array for each voltage
    src_spec = np.zeros((max_simkV))
    src_spec[:simkV] = phi_k[::2]  # Fill in the spectrum values
    src_spec_list.append(src_spec)

import matplotlib.pyplot as plt
import torch
from xspec.models import Reflection_Source

# Initialize the Reflection_Source model with specified voltage and takeoff angle ranges.
source = Reflection_Source(voltage=(160, 30, 200), takeoff_angle=(25, 5, 45), single_takeoff_angle=True)
source.set_src_spec_list(src_spec_list, simkV_list, reference_anode_angle)  # Set the source spectral list

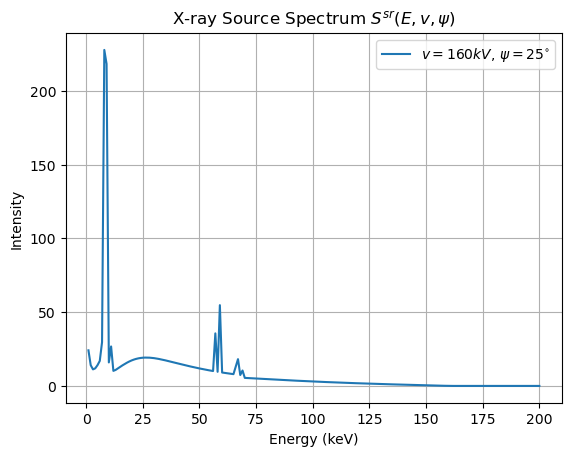

# Plot the resulting spectrum without gradient descent modifications (torch.no_grad() context)
with torch.no_grad():
    plt.plot(energies, source(energies), label='$v=160 kV$, $\psi=25^{\circ}$')

plt.xlabel('Energy (keV)')  # X-axis label
plt.ylabel('Intensity')  # Y-axis label
plt.title('X-ray Source Spectrum $S^{sr}(E, v, \psi)$')  # Plot title
plt.legend()  # Add legend
plt.grid(True)  # Add grid for better readability
plt.show()  # Display the plot

# Initialize the Reflection_Source model with specified voltage and takeoff angle ranges.
voltage_list = [40, 80, 150]
sources = [Reflection_Source(voltage=(v, 30, 200), takeoff_angle=(25, 5, 45), single_takeoff_angle=True) for v in voltage_list]
for si, source in enumerate(sources):
    source.set_src_spec_list(src_spec_list, simkV_list, reference_anode_angle)  # Set the source spectral list
    with torch.no_grad():
            plt.plot(energies, source(energies), label='$v_%d=%d kV$, $\psi=25^{\circ}$'%(si+1, voltage_list[si]))

plt.xlabel('Energy (keV)')  # X-axis label
plt.ylabel('Intensity')  # Y-axis label
plt.title('X-ray Source Spectrum $S^{sr}(E, v_k, \psi)$')  # Plot title
plt.legend()  # Add legend
plt.grid(True)  # Add grid for better readability
plt.show()  # Display the plot

Configure Filter Model using class: Filter

In X-ray systems, filters are always used to protect the detector and enhance image quality by selectively absorbing low-energy X-rays that contribute to image noise without improving image contrast. According to Beer’s law, the response of a single filter is

\[s^{fl}\left(E; M^{fl}, T^{fl}\right) = \mathrm{e}^{-\mu(E, M^{fl}) T^{fl}}\]

where:

• \(M^{fl}\) denotes the filter material, which is a discrete parameter with only a limited set of choices. Let’s assume \(M^{fl} \in \{Al, Cu\}\), indicating that the filter material can either be Aluminum (Al) or Copper (Cu).

• \(\mu(E, M^{fl})\) is the Linear Attenuation Coefficient (LAC) of material \(M^{fl}\) at energy \(E\).

• \(T^{fl}\) denotes filter thickness, which is a continuous parameter within a continuous range.

We provide the xspec.models.Filter class in order to provide an analytical filter model for gradient descent. Here is an example to configure a single filter \(s^{fl}\left(E; M^{fl}, T^{fl}\right)\).

from xspec import Material
from xspec.models import Filter

# Example configurations for a filter
psb_fltr_mat = [Material(formula='Al', density=2.702), Material(formula='Cu', density=8.92)]
filter = Filter(psb_fltr_mat, thickness=(5, 0, 10))

# Plot the source spectrum with given initial value.
with torch.no_grad():
    plt.plot(energies, filter(energies))

The filter response of an X-ray scan, composed of multiple filters. The overall filter response is defined as the product of the responses from multiple different filters. Mathematically, the filter response is represented as:

\[S^{fl}(E) = \prod_{p=1}^{N^{fl}} s^{fl}\left(E; M_p^{fl}, T_p^{fl}\right),\]

where,

• \(M_p^{fl}\) denotes the \(p^{th}\) filter material.

• \(\mu(E, M_p^{fl})\) is the Linear Attenuation Coefficient (LAC) of the \(p^{th}\) filter made of material \(M_p^{fl}\) at energy \(E\),

• and \(T_p^{fl}\) denotes its thickness.

from xspec import Material
from xspec.models import Filter

# Example configurations for a filter
# Material takes chemical composition formula and density g/cm^3
psb_fltr_mat = [Material(formula='Al', density=2.702), Material(formula='Cu', density=8.92)]
# Filter 1 thickness is initialized with 5 mm and should be estiamted within [0, 10] mm
filter_1 = Filter(psb_fltr_mat, thickness=(5, 0, 10))

# Filter 2's material can be only silicon.
# Filter 2 thickness is initialized with 1 mm and should be estiamted within [0, 2] mm
filter_2 = Filter([Material(formula='Si', density=2.33)], thickness=(1, 0, 2))

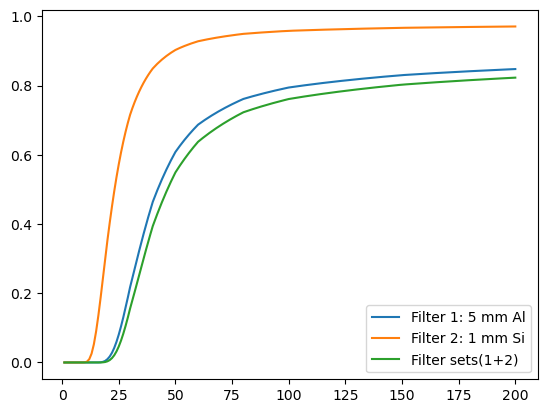

# Plot the filter response with the first possible material and initial thickness.
with torch.no_grad():
    plt.plot(energies, filter_1(energies), label = 'Filter 1: 5 mm Al')
    plt.plot(energies, filter_2(energies), label = 'Filter 2: 1 mm Si')
    plt.plot(energies, filter_1(energies)*filter_2(energies), label = 'Filter sets(1+2)')

plt.legend()

<matplotlib.legend.Legend at 0x2001c88967f0>

Configure Scintillatro Model using class: Scintillator

A scintillator converts absorbed X-ray photon energies into visible light photons. The response of various scintillators, often modeled using MCNP simulations, can be represented as:

\[S^{sc}\left(E ; M^{sc}, T^{sc}\right) = \frac{\mu^{en}(E; M^{sc})}{\mu(E; M^{sc})}\left(1 - e^{-\mu(E; M^{sc}) T^{sc}}\right) E,\]

where

• \(M^{sc}\) denotes the scintillator material, which is a discrete parameter with only a limited set of choices. Let’s assume \(M^{sc} \in \{CsI, Lu_3Al_5O_{12}, CdWO_4\}\).

• \(\mu^{en}(E; M^{sc})\) is the linear energy-absorption coefficient of the scintillator made of \(M^{sc}\) and

• \(\mu(E; M^{sc})\) represents the Linear Attenuation Coefficient (LAC) of the scintillator made of \(M^{sc}\).

• \(T^{sc}\) denotes scintillator thickness, which is a continuous parameter within a continuous range.

We provide the xspec.models.Scintillator class in order to provide an analytical scintillator model for gradient descent. Here is an example to configure a scintillator \(S^{sc}\left(E ; M^{sc}, T^{sc}\right)\) with only one possible material CsI.

from xspec import Material
from xspec.models import Scintillator

# Example configurations for scintillators

scint_params_list = [
    {'formula': 'CsI', 'density': 4.51},
    # Add additional materials as required
]
psb_scint_mat = [Material(formula=scint_p['formula'], density=scint_p['density']) for scint_p in scint_params_list]
scintillator = Scintillator(materials=psb_scint_mat, thickness=(0.25, 0.01, 0.5))

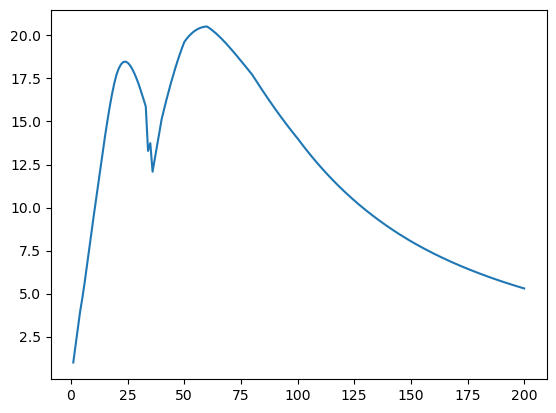

# Plot the filter response with the first possible material and initial thickness.
with torch.no_grad():
    plt.plot(energies, scintillator(energies))
